STANDARD OPTIONS

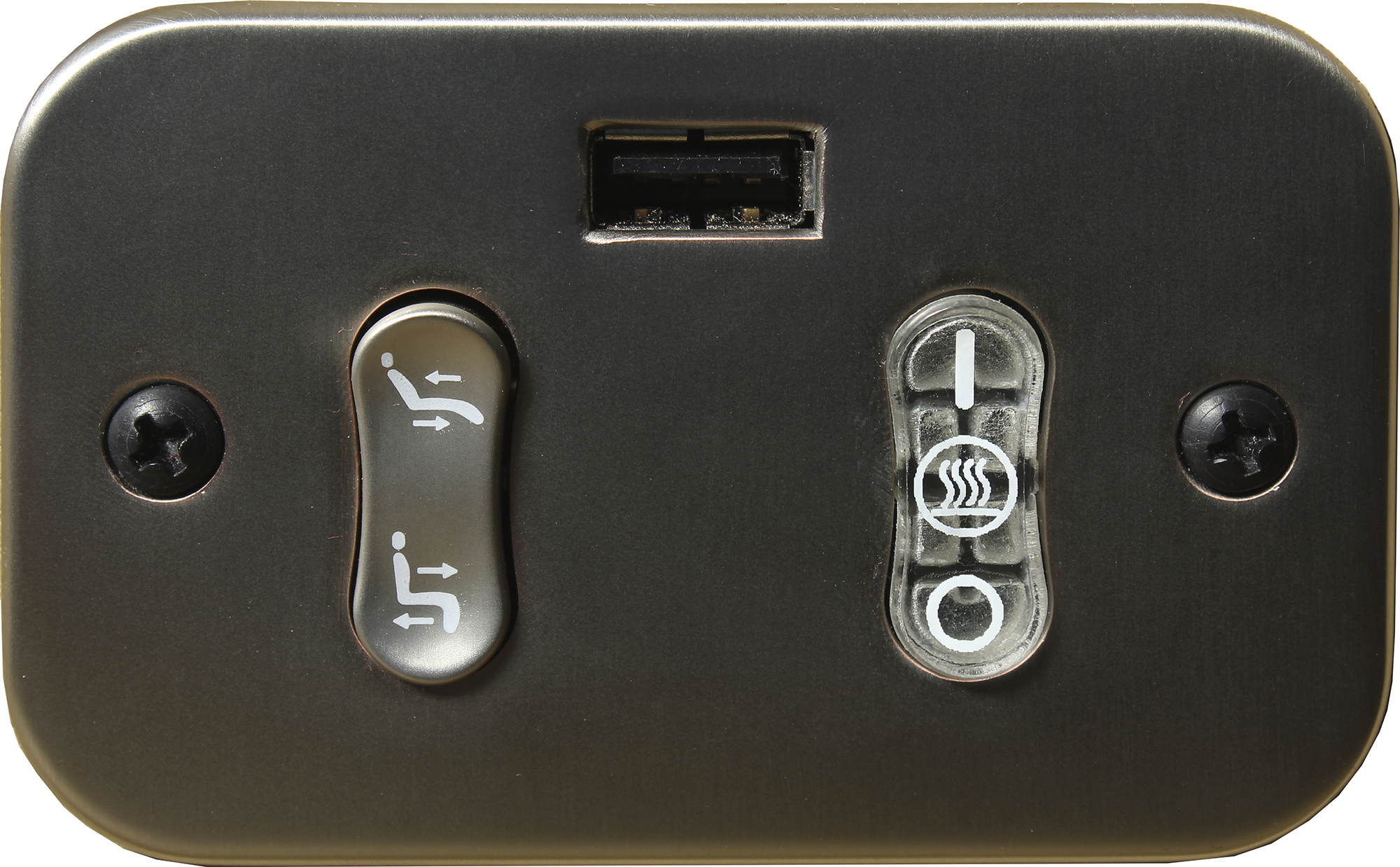

ACTIVATORS WITH USB PORTS
Black
Brushed Aluminum
NUMBERS
CUPHOLDERS
Black
Brushed Aluminum
UPGRADE OPTIONS
MASS OPEN/CLOSE
With one remote transmitter, this system allows operators to open/close hundreds of seats at one time.
FEATURES
Reduces time to reset seating between shows
Open and close footrest
Open and close seat cushions
Cleaning efficiency by opening all seats at once
Easily verify operation of all seats
SPECIFICATIONS
INPUT: 18~35Vdc, Max. 0.1A • S01 2pin Male plug
BACKUP BATTERY: 18V (2x 6LR61)
WIRELESS PARAMETERS: RF Frequency: 2.4GHz
Working mode: Broadcasting only
Control Range: >50m in open space
ANTENNA: Build-in 2.4GHz 3dBi Antenna
KEY LOCK SWITCH: 2 position on and off with key
DISPLAY: 16 characters x 2 Row
POWERLINK
Allows up to 10 chairs to be powered from a single outlet (up to 20 chairs per duplex outlet)
Provides self charging battery back up in the event of a power failure
Significantly reduces construction and operating costs
Provides efficient conversion on sloped floors
Reduces electric power requirements in a theater
SPECIFICATIONS
Dimensions: 4 3/4” X 2 1/4” X 2 3/4”
Weight: 1.1 Lbs.
CLASS 2 Power Unit
Input Power: 100-240 V, 50/60 Hz, 1.6A
UL Certified
Output Power: 29 V @ 2A
Duty cycle: Max 10%; Max T-ON: 2min
POWER OUTLET ON OUTER END
POWER OUTLET IN CENTER OF ROW
26’ power cable with 5 BRANCH CONNECTIONS
Connects to each power supply and is to be zip tied below metal rails of chairs continuing along the row
HEATED SEAT ACTIVATORS
Black
Brushed Aluminum
